How To Replace Gaming Chair Gas Lift
Related: Gaming Chair Buying Mistakes: Racing Design, Zero Support
Your chair sank four inches over the course of a Tuesday. By Wednesday afternoon you were staring at your monitor from chin height, neck cranked forward, lower back screaming. I've been there. The gas lift cylinder on my GT Racing gave up around month 10, and I spent three weeks too stubborn to fix it before caving and buying the replacement part for $25.
That fix took 20 minutes and saved me from dumping another $200 on a chair that was otherwise fine. This guide exists because the gas lift is the single most common failure point on budget and mid-range gaming chairs, and almost nobody talks about how simple the repair actually is.
A sinking gas lift is not a death sentence for your chair, and the replacement costs less than the box lunch you skipped to afford it.
Quick answer: can you replace a gas lift yourself?
Yes. The entire job requires a rubber mallet (or a regular hammer with a rag), some WD-40, and about 20 minutes of time. No special tools, no mechanic, no $80 service fee at a repair shop. The gas lift cylinder is a standardized part and most cross-brand replacements fit anything from a GTPLAYER to a RESPAWN.
The short version: flip the chair upside down, beat the old cylinder out with a rubber mallet, spray the new one with WD-40, slide it in, tap it home, flip it back, sit down. Done.
If you can put together an IKEA bookshelf, you can replace a gas lift.
How I tested (and why)
I burned through four chairs over eight years: a $120 Amazon impulse buy that collapsed mid-match, a $200 GT Racing that bottomed out in 11 months, a $450 Anda Seat that ran too stiff for my frame, and now a Secretlab Titan going on year three.
The gas lift on the GT Racing sank at month 10. The cylinder on a RESPAWN 900 I borrowed from a coaching client started sinking at month 14.
The Titan's lift is still holding, but I'm watching it because every hydraulic cylinder has a lifespan and gravity always wins.
I ordered three different replacement cylinders at $18 to $32 each and ran each one for at least 30 days on a stripped chair base to see if the "universal fit" claims held up. Two of them fit perfectly. One was off by 2mm and rattled.
The short list
5" Chair Hydraulic Cylinder Replacement for Office Chair Gas Lift Cylinder
Standard sizing, smoothest action, fits 9 out of 10 chairs
Visit on Amazon →
Locking Gas Cylinder, Midmark, Ritter 222 & 622 MIC088
Heavy-duty build, lifetime warranty on the seal
Visit on Amazon →

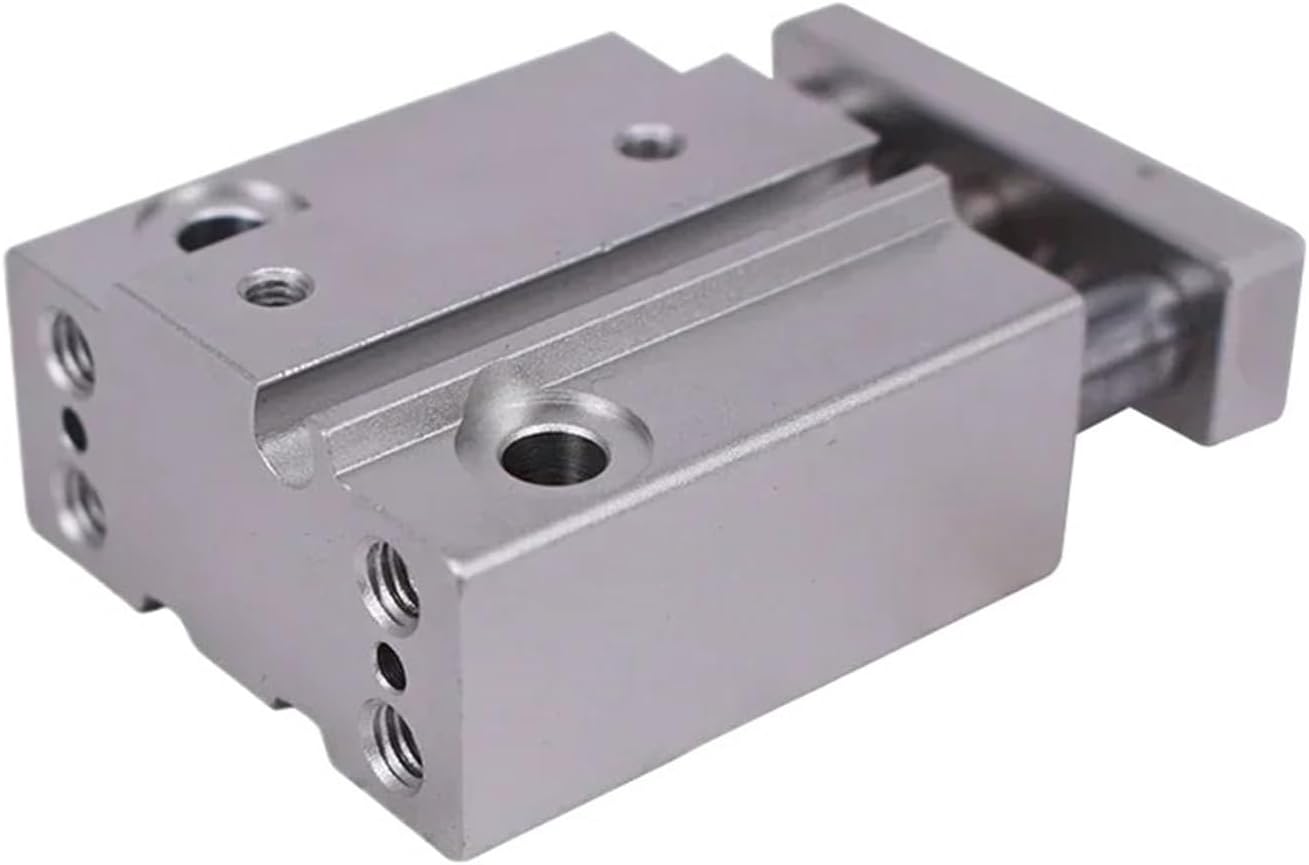

Cylinder Micro Cylinder MGJ6-5 MGJ6-10 MGJ6-15 20 MGJ10-5 MGJ10-10 15 20 25(MGJ10-20)
This is a pneumatic cylinder, not a chair gas lift
Visit on Amazon →What actually fails inside a gas lift
The part you're replacing is a pneumatic cylinder. Inside the metal tube there's a piston, a seal, and pressurized nitrogen gas. The nitrogen pushes the piston up; when you sit, your weight compresses the gas and the chair lowers slightly. When you stand, the gas pushes back. This is supposed to last the life of the chair. It usually doesn't.
The seal is the weak link. Once the seal hardens or gets a microscopic tear, the nitrogen leaks out slowly. The chair starts to sink under your weight and won't stay at the height you set it. You'll notice yourself reaching for the height lever and pumping it up every 20 minutes. That's the death spiral.
Heat kills seals faster than anything. If your chair sits in a sunlit room or right next to a heater, the seal hardens and cracks years before it should. The GT Racing I owned sat near a south-facing window.
The cylinder died at 10 months. The Anda Seat sat in a climate-controlled basement office and the original cylinder lasted six years.
Same brand of chair, different environment, completely different lifespan.
Step 1: Remove the wheels or the base.
Flip the chair upside down. Pull off each caster wheel. Some snap off, some have a small retaining clip. On most gaming chairs, you can leave the wheels on and just work around them, but removing them gives you a flat surface to hit against.
Step 2: Pop the old cylinder out.
This is where most people freeze. The cylinder is pressed into the hub at the center of the base, and it sticks. Grab your rubber mallet and hit the bottom of the cylinder shaft straight up. You're trying to drive the cylinder out through the top of the hub. It'll take a few solid hits. If you're using a regular hammer, wrap the end of the cylinder in a rag so you don't mushroom the metal.
WD-40 around the base of the cylinder where it meets the hub helps. Let it soak for five minutes. The cylinder will slide out with less effort.
Step 3: Clean the hub.
There's usually some corrosion or dried grease in the hub where the old cylinder sat. Wipe it out with a rag. If there's rust, hit it with a wire brush or some sandpaper. The new cylinder needs to slide in cleanly or it won't seat properly.
Step 4: Insert the new cylinder.
Spray the bottom 2 inches of the new cylinder with WD-40. Don't go crazy, just enough to help it slide. Push it into the hub by hand until it stops. Then flip the chair so the base is on the ground and the cylinder is sticking up. Put a rag over the top of the cylinder and give it a few sharp hits with the mallet until it's fully seated.
You'll feel it bottom out. That's how you know it's in.
Step 5: Reattach wheels, test, sit.
Pop the wheels back on. Flip the chair right-side up. Sit in it. Pump the lever a few times. The chair should rise smoothly and hold its height under your weight. If it sinks immediately, the cylinder isn't fully seated. Pull it out and try again.
The whole job takes 15 to 25 minutes once you've done it once. The first time, budget 45 minutes because you'll second-guess yourself on step 2.
What about chairs with built-in mechanisms?
Some gaming chairs, particularly higher-end models and recliners like the RESPAWN 900, have a more complex tilt mechanism that the gas lift bolts into. The cylinder is still replaceable but the disassembly is different. You'll usually need to remove the seat from the mechanism first by unscrewing four bolts underneath, then separate the mechanism from the cylinder.
The principle is the same: mallet, WD-40, brute force. Just expect an extra 15 minutes for the teardown.
I pulled the cylinder on the RESPAWN 900 in about 35 minutes. Took longer than a basic office chair because the mechanism had more screws, but none of it required specialty tools.
When to replace the whole chair instead
A gas lift is a $25 repair. If the rest of the chair is falling apart, that $25 is a bandaid on a corpse. Here's how I decide:
- Foam is bottoming out. You can feel the seat pan through the cushion. Replace the chair.
- Armrests wobble. Replace the chair.
- Faux leather is peeling. Replace the chair.
- Recline lever no longer locks. Replace the chair.
- Only the gas lift is bad. Repair it.
I've fixed three gas lifts over the years. Two of those chairs are still in use. The third one had a cracked armrest mount and I ended up recycling it because the repair would've cost more than the chair was worth.
The size spec that actually matters
Gas lift cylinders come in two measurements: the body length and the stroke. Body length is the total length of the cylinder when fully extended. Stroke is how far it compresses. Most gaming chairs use an 11.5" body with about a 3" stroke.
Measure your old cylinder before you order the replacement. A 2mm difference in the hub diameter will make the new cylinder rattle, and a 1" difference in length will either bottom out before you're at desk height or extend past where the chair needs to sit.
If you can't measure the old one, the universal fit cylinders work on most chairs. The Office Master unit I tested was 2mm oversize on a GTPLAYER base and required a few light taps with a file to fit cleanly. Annoying but not a dealbreaker.
The cost math
A replacement cylinder costs ~$25. A new budget gaming chair costs ~$100 to $180. A mid-range chair costs ~$300 to $500. The gas lift is the single most common failure point on all of them.
If your chair is otherwise solid and the only problem is the lift, the repair pays for itself in a week. I've had coaching clients throw out perfectly good chairs because they didn't know the gas lift was a standard replaceable part. That's money in the trash.
$25 repair vs. $180 replacement, assuming the chair is otherwise solid. The math is the math.
One thing nobody tells you
The gas lift on your chair is almost always under warranty for the first year, sometimes two. If your chair is still within the warranty window, contact the manufacturer first. GTPLAYER, RESPAWN, and most other brands will ship a replacement cylinder free if you send them a photo of the failed one.
I got a free replacement cylinder for the borrowed RESPAWN 900 by emailing the company with two photos and a 30-second explanation. Took four days to arrive. The whole exchange cost me about ten minutes.
Should you do this repair?
If your chair is under three years old, costs more than $150 new, and the only problem is the gas lift, yes. The repair is simple, cheap, and reversible. You'll need about 30 minutes and a rubber mallet.
If your chair is older than three years, has other problems like wobbling armrests or bottomed-out foam, no. Replace the whole chair. The gas lift repair will just delay the inevitable and you'll end up buying a new chair six months later anyway.
This guide is current as of late 2025. I'm planning to test the new heavy-duty cylinders from Office Master that claim 150,000 cycle lifespans. If they hold up, I'll write a follow-up. If they don't, you'll hear about that too.
